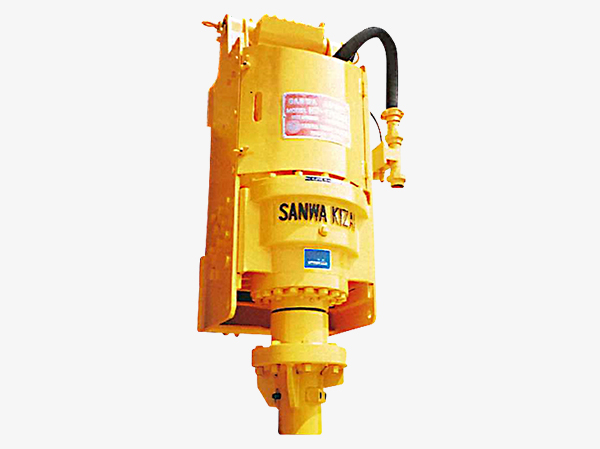

Hydraulic Auger Series
Sanwa has Hydraulic Auger Series as well as electric ones.
Main features of them are compact, light weight & variable rotation speed.
Power source can be taken from engine equipped in basic machine subject to its capacity.
They are efficient in limited and congested areas especially.
This data. Please swipe lef or right.
| Model | Rotation SpeedMax (min-1) |
Rated Torque Max(kN-m) |
Weight (t) |
Recommended Augering Dia (mm) |
Oil Pressure Max(MPa) |
Oil flow Max(L/min) |
Swivel Dia. (mm) |
|
|---|---|---|---|---|---|---|---|---|
| HO-1700T* | Hi | 50 | 8.29 | 1.05 | ø260~500 | 24.5 | 150 | 42 |
| Low | 35 | 16.59 | ||||||
| HO-2700T* | Hi | 53.4 | 13.21 | 1.55 | ø260~600 | 180 | ||
| Low | 26.7 | 26.43 | ||||||
| HO-2200 | 30 | 20.63 | 1.7 | ø260~500 | 167 | |||
| HO-3000 | 30 | 29.71 | 3.5 | ø260~600 | 240 | 52 | ||
| HO-4200 | 30 | 41.26 | 3.7 | ø280~800 | 334 | |||
| HO-5800 | 30 | 56.93 | 4.0 | ø450~1000 | 461 | |||
| * provided 2 step motor, controlled by electric remote switch. | ||||||||
Please note that some products may be subject to small changes due to continuous studies into design and performance.
