Doughnut auger series

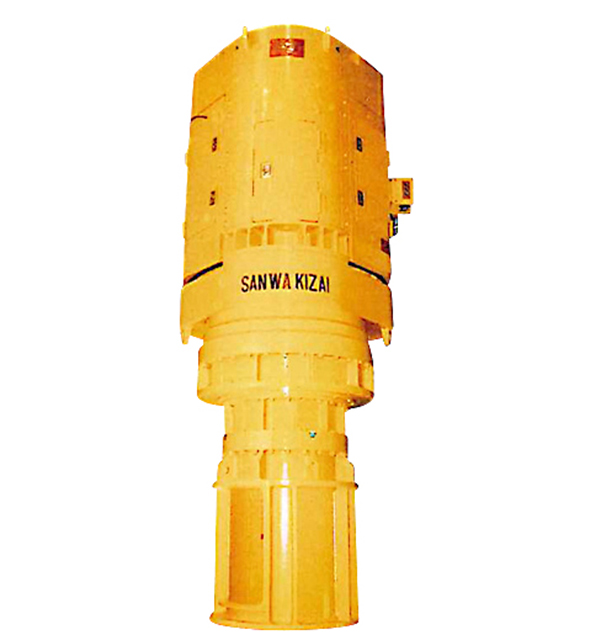

Sanwa Doughnut Auger Series are unique system to rotate casing (steel tube) and auger flight at the same time each opposite direction either by two separate auger drive units or by one auger drive unit.

The former we call Doughnut Auger and the latter we call Mono-Doughnut Auger.

Selection depends job application. This series are able to apply for offshore jobs also. One of new application of this series is to remove or to cut obstacles underground such as old piles, existing concrete constructions, riprap layer of old wharf, etc with heavy-duty cutter bits on casing and auger head.

This data. Please swipe lef or right.

Model Motor
Output × Unit × Pole
Rotation Speed
Max(rpm)
Rated Torque
Max(t-m)
Weight
(t)
Recommended Augering dia
(mm)
SMD-240HP 90kw × 2 × 4/6P 19.5 / 7.2 13.48 / 36.52 14.6 ø500 ~ 1500
SMD-150HP 55kw × 2 × 4/8P 19.5 / 7.2 11.04 / 29.76 14.5 ø500 ~ 1500
SMD-150NP 55kw × 2 × 4/8P 32.3 / 12.5 6.76 / 17.38 8.1 ø500 ~ 1500
SMD-120NP 45kw × 2 × 4/8P 27.1 / 110.5 6.59 / 16.98 7.7 ø450 ~ 800
SMD-80KP 55kw × 4/6P 17.8 / 6.8 4.51 / 11.72 6.8 ø450 ~ 600
SMD-60KP 45kw × 4/6P 23.3 / 7.6 2.88 / 8.67 4.7 ø400 ~ 500

Please note that some products may be subject to small changes due to continuous studies into design and performance.
