RODAM (Rock Doughnut Auger Machine) Series

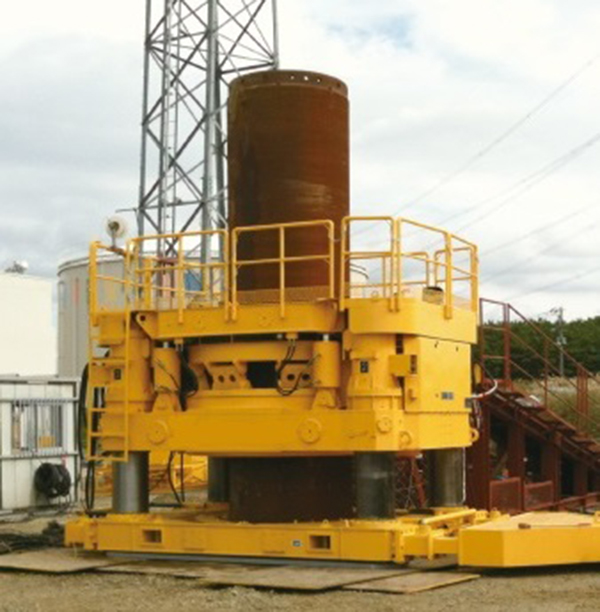

RODAM (Rock Doughnut Auger Machine) Series are rotator of double casing of diameter ranging ø1000mm up to ø2000mm. This series are applied for all casing cast-in place concrete pile, and removal or cutting obstacles underground as well as Sanwa Doughnut Augers. Soil inside of double casing is removed by hammer grab usually. We have Mini-Rodam of diameter ranging ø500 up to ø800 also.
This data. Please swipe lef or right.
| Model | Rotation Speed rpm (Max) |
Rated Torque tf-m (Max) |
Retract Force tf |
Type | Weight t |
Drilling Dia. mm |
|---|---|---|---|---|---|---|
| RB-200HC-III | 2.2 | 180 | 214 | Stationary | 35 | ø1000～2000 |
| RS-150H-II | 2.9 | 150 | 206 | Crawler | 93 | ø1000～1500 |
| RB-150H-II | 2.5 | 135 | 214 | Stationary | 28 | ø1000～1500 |
| RB-080H | 5.4 | 13 | 42 | Stationary | 6.5 | ø600～800 |
Please note that some products may be subject to small changes due to continuous studies into design and performance.
