Multi-Shafts Auger Series

For Soil cement-mixing wall Construction
For Cement Slurry Deep Soil Mixing Method

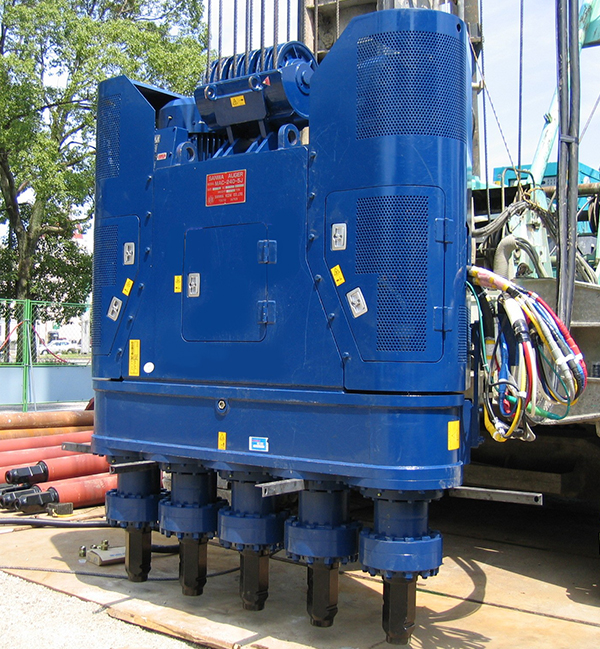

Sanwa Multiger series has plural output shafts to apply for retaining walls and or soil consolidation (stabilization) using agitating auger flight and head.
In this works, cement slurry is injected to ground through swivel device in Multiger and hollow stem in agitating auger flight and head.
Existing soil is mixed and agitated with slurry by means of agitating flights and head that are connected with plural output shafts of Multiger.
From this series, clients have established their own methods such as CDM, JST, SMW etc.

This data. Please swipe lef or right.

Drive Unit	Number of Rod Shaft	Pitch between Shafts (mm)	Electric Motor Output × Unit × Pole	Rotation Speed @4P (rpm)	Rated Torque @8P (t-m)	Weight (ton)
Model	Number of Rod Shaft	Pitch between Shafts (mm)	Electric Motor Output × Unit × Pole	Rotation Speed @4P (rpm)	Rated Torque @8P (t-m)	Weight (ton)
MAC-120-3A	3	450	45kw × 2 × 4/8P	45.2	2.11	9.7
MAC-160-2S	2	800 / 1000 / 1200	55kw × 2 × 4/8P	38.6	3.32	9.1
MAC-200-2S	2	800 / 1000 / 1200	75kw × 2 × 4/8P	38.6	4.53	10.0
MAC-240-2S	2	800 / 1000 / 1200	90kw × 2 × 4/8P	38.6	5.44	10.7
MAC-80-3J	3	450	30kw × 2 × 4/8P	41.2	1.24	5.8
MAC-120-3J	3	450	45kw × 2 × 4/8P	45.1	1.59	7.5
MAC-150-3J	3	450	55kw × 2 × 4/8P	39.9	2.15	9.5
MAC-200-3J	3	600	75kw × 2 × 4/8P	37.5	3.12	10.5
MAC-240-3J	3	600	90kw × 2 × 4/8P	37.5	3.75	11.2
MAC-220-5J	5	450	55kw × 3 × 4/8P	45.2	1.71	11.5

Please note that some products may be subject to small changes due to continuous studies into design and performance.

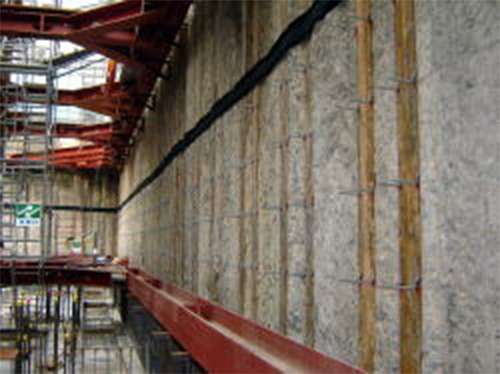

Soil cement-mixing wall method for making the soil-cement wall that does in situ by using the multi shaft auger equipment developed specially, by injection of cement slurry from the point and mixing it with the existing soil for making the soil-cement wall. As a soil cement-mixing wall of continual one body, the complete lap being able to point to the bored hole mixing axis of the element edge to the next element,it keeps creating.

For Soil cement-mixing wall Construction

As for the Soil cement-mixing wall, it is possible to utilize wide-ranging in the waterproof earth retaining wall, in the resistance earth retaining structure and the dead water wall.

Standard wall thickness of Soil cement-mixing wall method is Ø550- 650mm and Ø850mm. In case ofØ850mm walls, it is superior in yield waterproof characteristic and high reliability at deep retaining structure.

As for the Soil cement-mixing which it operates the based machine, the earth auger, the screw and the plant which responds to purpose combining with the optimum. For example, when it is the hard ground where the preceding pre-boring is necessary, changing to the single auger screw for pre-boring.

1High waterproof effect

Soil cement-mixing wall is uniform with the unique mixing mechanism which provides the mixing wing and the traveling wing alternately.
Furthermore because the elements is jointed each other with lap system, it is superior in waterproof characteristic in comparison with conventional method.

2Little influence for circumference area foundation, no ground subsidence

Because of Mixing-agitating with cement slurry is performed in situ earth in order to create the soil cement wall, looseness and collapse of the hole wall quite are little, the influence for circumference area foundation such as ground subsidence has decreased.

3Shortening in term of works

Because In site earth mixing system with one process, period of works is shorten in comparison with conventional method, and superior in economical efficiency.

4High Liability

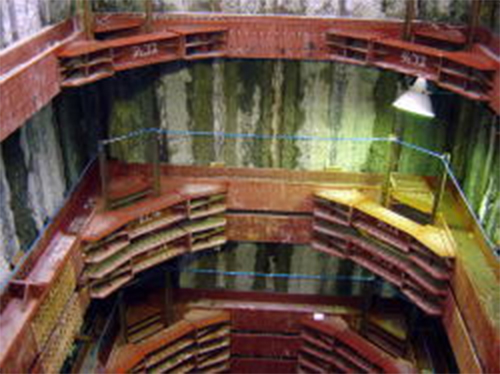

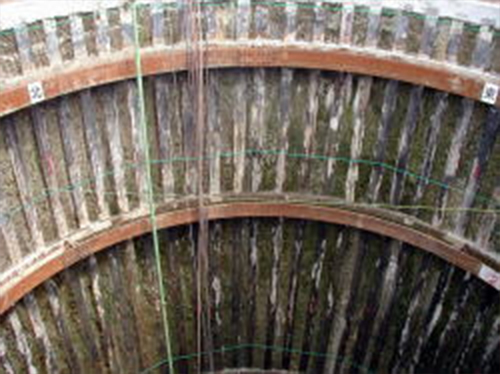

Standard mixing column diameter is Ø550 - 650 mm, but to correspond to the much deeper requirement recently, mixing column diameterØ850 - 900 mm has become possible due to the reinforcing material having big section modulus be able to insert.
As for depth of wall longest are 67.5 m.

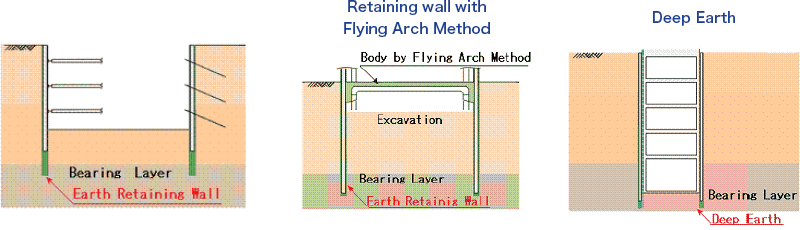

Soil Retaining Wall

Soil mixing wall, consists only the soil cement when and, are times when it is constituted by with the reinforcing material (H shaped steel beam, sheet-pile, concrete product and others).
Wide-ranging utilization becomes possible by inserting the reinforcing material as an earth retaining wall and a resistance earth pressure structure.

Deep Mixing Method

For Cement Slurry Deep Soil Mixing Method

Features

Required strength is surely obtainable
Reduction in project period
No settlement due to consolidation
No contamination, No pollution
Applicable various soil materials and layers
Cost effectiveness
